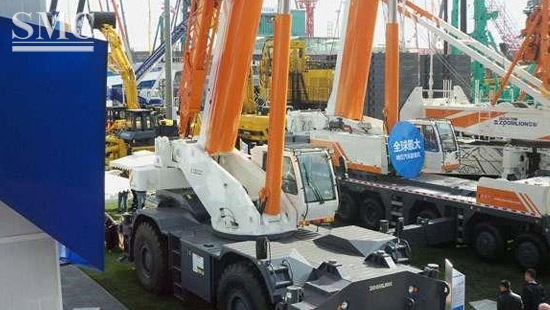

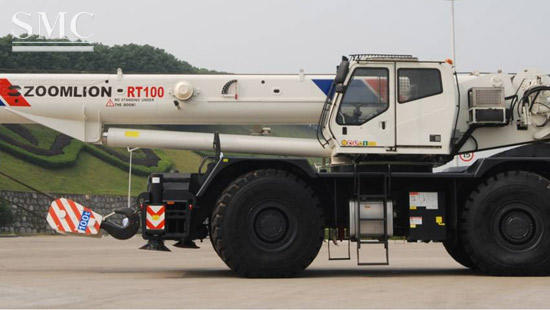

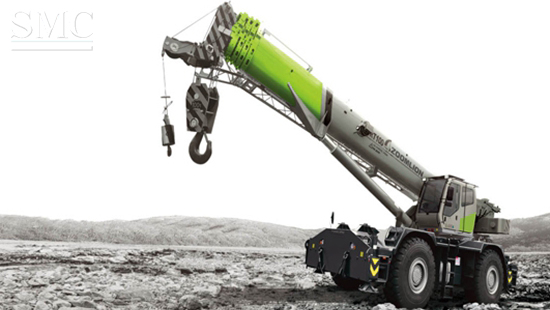

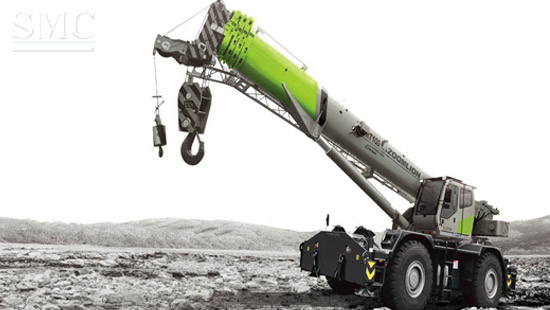

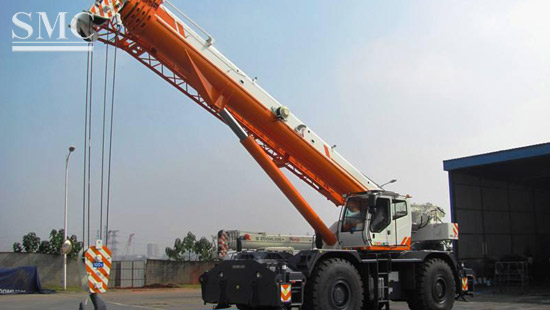

ZOOMLION 100Ton Rough Terrain Crane RT100

Product Detail | Technical Information | Packaging

Product Detail

Shanghai Metal Corporation is a professional supplier of ZOOMLION 100Ton Rough Terrain Crane RT100 with high quality and reasonable price.

Maneuverable and robust drive • Four-wheel drive and four-wheel steer chassis;

• Fully hydraulic steering system;

• Variable steering modes, front-wheel steer,four-wheel steer and crab steer;

Short vehicle length and small turning radius provide the crane with maximum maneuverability and flexibility in narrow job sites

Excellent off-road capability

• Big ground clearance and departure / approach angle offer excellent off-road capability.

If you want to know more about Rough Terrain Crane or ZOOMLION 100Ton Rough Terrain Crane RT100 price please feel free to contact us, we will reply you within 24 hours

• Cummins electronically-controlled engine, automated transmission and steerable drive axlex provide reliable power output.
• Even in the condition of abrupt road resistance,the engine can also be functional.

• Four-wheel drive, hydraulic suspension and special tires optimize the vehicle’ s drive performance to its maximum, suitable for any bad roads and job sites.• The rough terrain crane has the ability to pick and carry loads, thus improves the working efficiency greatly.
• The crane can also carry out ”On tires“ Lifts without extending the outrigger beams in narrow job sites.
• Superior pick-and-carry ability during short-distance transit can bring great convenience to the users.

Single cab design
• Single cab design with large skylight provides large field of view;
• Air-cushioned seat suits to all types of figures, which can release the driver’ s or operator’ s fatigue, thus improves the working efficiency;

• The crane is fitted with air conditioning, suitable for all-weather work;
• Digital display and keyboard units,advanced data bus technology,error check and audible & acoustic alarm ensure the safety and high efficiency of the operation.

Technical Information of 100Ton Rough Terrain Crane RT100:

Item		Unit	Value
Work performance	Max. rated lift capacity × work radius	kg.m	100000×3.0
	Max. load moment of basic boom	kN.m	3339
	Max. load moment of fully extended main boom	kN.m	1388
	Max. lift height of fully extended main boom	m	45.6
	Max. lift height of jib	m	63
Dimensions	Overall dimensions(L×W×H)	mm	14247×3620×3960
	Outrigger spread (L×W)	mm	8000×7900
	Main boom length (Fully retracted fully extended)	mm	10800-34000
	Jib length (Jib section 1,jib sections 1+2)	mm	10000-17000
	Boom angle	°	-3 - 78
	Swing range	°	360 360° unlimited swing(Full range)
Work Speeds	Max. hoist rope speed (Main winch)	m/min	126
	Min. boom extend time	s	170
	Min. boom retract time	s	158
	Min. boom derrick up time	s	82
	Min. boom derrick down time	s	69
	Swing speed	r/min	0-1.5
Hydraulic system	Rated work pressure	MPa	30
	Rated work oil flow	L/min	500
	Hydraulic oil tank capacity	L	1200
Mass	Complete vehicle mass	kg	65000
	Front axle load	kg	33200
	Rear axle load	kg	31800
Travel	Max. travel speed (Forwarsd / backwards)	km/h	24/15
	Wheelbase	mm	4600
	Treads (Front / rear)	mm	2860

Packaging Details: Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail: 10 days
