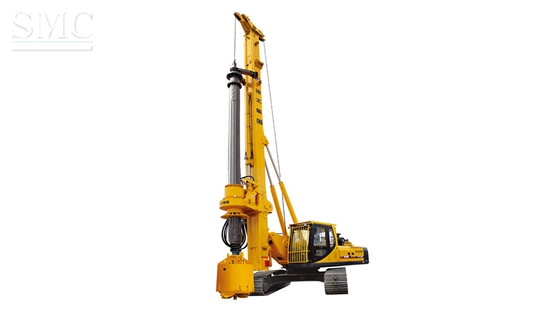

XCMG 41.5ton Rotary Drilling Rig XR120
- Brand Name: XCMG
- Model Number: XR120
- Dimension: 7310*4000/4100*17260mm
- Place of Origin:Jiangsu, China (Mainland)
Shanghai Metal Corporation is a professional supplier of XCMG 41.5ton Rotary Drilling Rig XR120 with high quality and reasonable price.
If you want to know more about XCMG 41.5ton Rotary Drilling Rig XR120 price please feel free to contact us, we will reply you within 24 hours.
Technical Information of 41.5ton Rotary Drilling Rig XR120:
|
Project |
Unit |
Parameter |
|
Max.Drilling Diameter |
||
|
Uncased |
(mm) |
φ1300 |
|
Cased |
(mm) |
- |
|
Max.Drilling Depth |
(m) |
44 |
|
Dimension |
||
|
Working condition L × W × H |
(mm) |
7175×3400×16800 |
|
Transportation condition L × W × H |
(mm) |
12580×3400×3360 |
|
Overall Drilling Weight |
(t) |
40 |
|
Engine |
||
|
Model |
- |
CUMMINS B5.9-C |
|
Rated Power |
(kW) |
112/1950 |
|
Hydraulic System |
||
|
Working pressure |
(MPa) |
32 |
|
Rotary Drive |
||
|
Max. output torque |
(kN.m) |
120 |
|
Rotary speed |
(r/min) |
6-28 |
|
Spin off speed |
(r/min) |
- |
|
Pull-Down Cylinder |
||
|
Max.pull-down piston push |
(kN) |
120 |
|
Max.pull-down piston pull |
(kN) |
120 |
|
Max.pull-down piston stroke |
(mm) |
3500 |
|
Crowd Winch |
||
|
Max.pull-down piston push |
(kN) |
- |
|
Max.pull-down piston pull |
(kN) |
- |
|
Max. pull-down piston stroke |
(mm) |
- |
|
Main Winch |
||
|
Max.pulling force |
(kN) |
100 |
|
Max. single-rope speed |
(m/min) |
70 |
|
Diameter of the steel wire rope |
(mm) |
24 |
|
Auxiliary Winch |
||
|
Max. Pulling force |
(kN) |
45 |
|
Max. single-rope speed |
(m/min) |
70 |
|
Diameter of the steel wire rope |
(mm) |
16 |
|
Drilling mast |
||
|
Left/right inclination of mast |
(°) |
42432 |
|
Front inclination of mast |
(°) |
5 |
|
Rotary table slewing angle |
(°) |
360 |
|
Traveling |
||
|
Max. traveling speed |
(km/h) |
3.2 |
|
Max.grade ability |
(%) |
40 |
|
Crawler |
||
|
Track shoe width |
(mm) |
700 |
|
Distance between tracks |
(mm) |
3400 |
|
The length of crawler |
(mm) |
3650 |
|
Average ground pressure |
(kPa) |
73.6 |
Packaging & Delivery of 41.5ton Rotary Drilling Rig XR120:
Packaging Details:Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:10 days
Main Features of 41.5ton Rotary Drilling Rig XR120:
1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly
