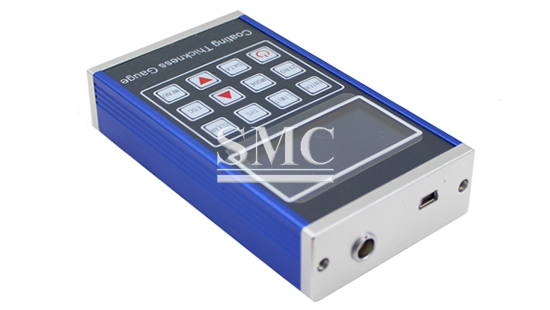

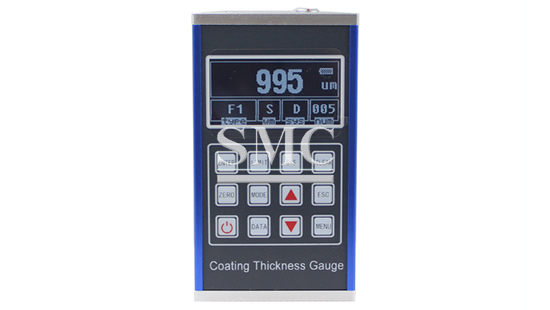

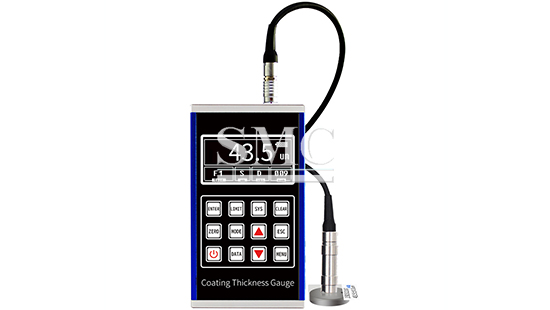

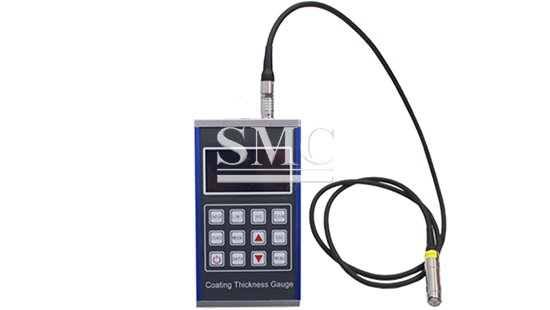

Coating Thickness Gauge

Model Number: SMC

Dimension: 115mm×67mm×31 mm

Place of Origin: China

Product Detail | Packaging | More

Product Detail

ShanghaiMac is an professional manufacturer on Coating Thickness Gauge and many other electromechanical machines since 2010.Our products have been highly recognized by clients from U.S, Canada, Europe, India, South America, Southeastern Asia, etc. We have our own special producing engineering for all of our machines, which need much more working and to use much better material on the products, and then make the quality much better than others, as you can check from the customer reviews on the comparing ours with others.

1, Various probes optional, probe auto matching;
2, Durable ruby probe, more wear and precise;
3, Full metal shell design, sturdy, portable, high reliability;
4, Alarm function when overrun the settable limiting range;
5, Five statistics values [MEAN, MAX, MIN, NO., S.DEV] higher measurement accuracy;
6, Large storage, easy to delete single or multiple saved values.
7, PC software optional, convenient the data transmission, analysis, printing etc.

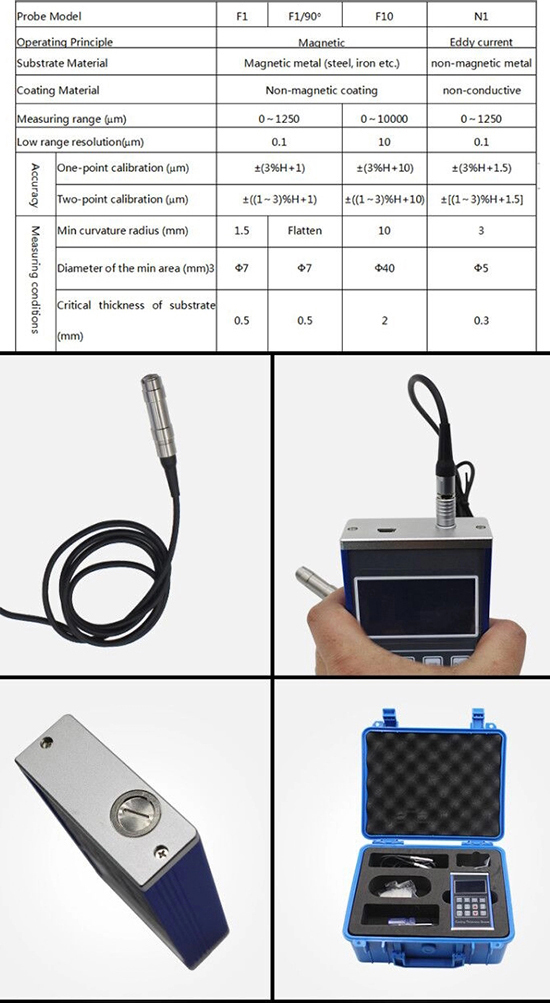

8, With different probe: KY100can measure the thickness of non-magnetic coating layers covered on magnetic substrate. Such as: non-magnetic (aluminum, chrome, copper, enamel, rubber, paint) covered
9,On magnetic substrate (steel, alloy and magnetic stainless steel) It also can measure the thickness of non-conductive coatings layers covered on conductive substrate. Such as: (enamel, rubber, paint, vanish, plastic anodic-oxide layer) covered on conductive substrate (aluminum, brass, zinc and nonmagnetic stainless steel).

1. Widely used to measure the thickness of non - magneticmaterials ( e.g.paint, plastic, porcelain enamel,copper, zinc, aluminium, chrome etc .) on magnetic materials (e.g. iron,nickle etc.).
2. Often used to measure the thickness of plating layer,lacquer layer,porcelain enamel layer, phosphide layer, coppertile ,a luminiumtile , some alloy tile,paper etc.
3. Nondestructive detection:No destruction to samples
4. Fast detection
5. Direct testing

Widely used to measure the thickness of non - magneticmaterials ( e.g.paint, plastic, porcelain enamel,copper, zinc, aluminium, chrome etc .) on magnetic materials (e.g. iron,nickle etc.)

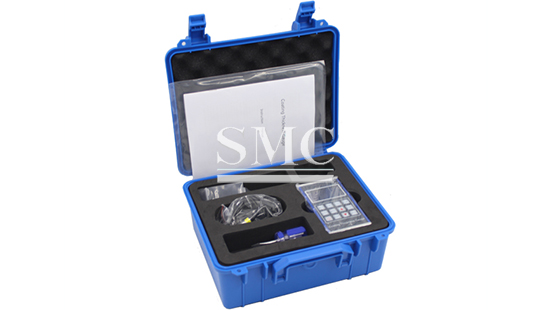

Packaging of Coating Thickness Gauge:

Standard export packing, fit for multiple handing and long distance air/ marine shipping.

The coating thickness gauge can be used to measure the thickness of electroplated layer, paint layer, enamel layer, aluminum tile, copper tile, babbitt alloy tile, phosphate layer, paper, and can also be used for hull paint and attachments to underwater structures Thickness measurement. This instrument can be widely used in manufacturing, metal processing, chemical industry, commodity inspection and other inspection fields.
