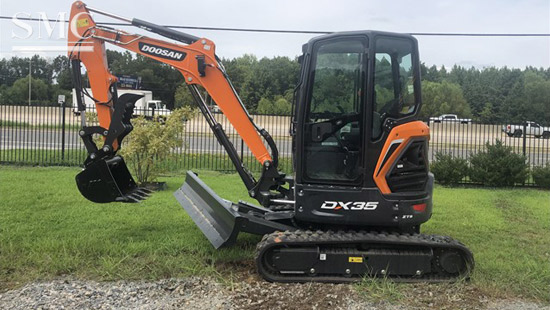

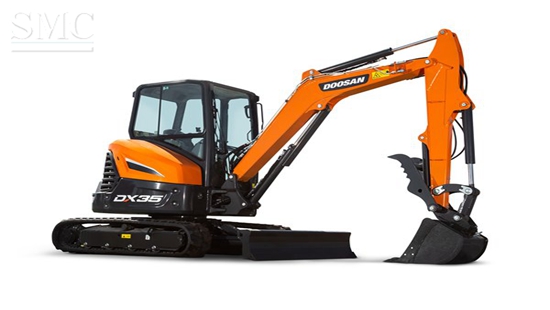

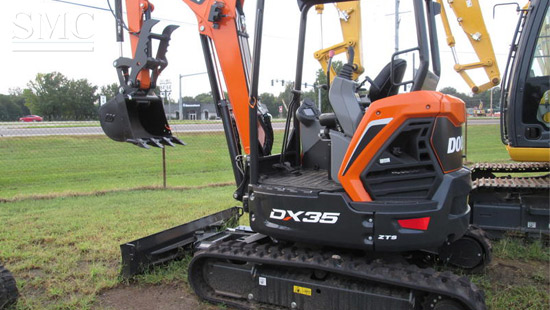

Doosan DX35-5 Mini Excavator
- Brand Name: DOOSAN
- Model Number: DX35-5
- Dimension:
- Place of Origin:
Shanghai Metal Corporation is a professional supplier of Doosan DX35-5 Mini Excavator with high quality and reasonable price.
The new zero tail swing Doosan® DX35-5 is now the smallest excavator available from Doosan. This 3-ton class excavator is designed with zero tail swing, which makes it an ideal machine for operating on congested job sites and working next to other objects.
If you want to know more about Mini Excavator or Doosan DX35-5 Mini Excavator price please feel free to contact us, we will reply you within 24 hours
Techincal Information of Doosan DX35-5 Mini Excavator:
|
Engine |
|
|
Rated Flywheel Power (Gross) |
25 kW @ 2,400 rpm (SAE-J1995) |
|
Rated Horse Power (Net) |
23.3 kW @ 2,400 rpm |
|
Max. Torque (Net) |
11.21 kgf·m @ 1,600 rpm |
|
Engine Emissions Tier (EPA) |
Tier 4 |
|
Hydraulic System |
|
|
Main Pump: Max. Flow Rate (each) |
100.69 l/min |
|
Main Pump: Main Relief Pressure |
244.97 bar |
|
Undercarriage |
|
|
Lower Rollers: Quantity Per Side |
4 |
|
Track Length |
2,074 mm |
|
Swing Mechanism |
|
|
Swing Performance: Max Swing Speed (At Efficiency) |
8.6 rpm |
|
Travel System/Drive Mechanism |
|
|
Travel performance: Traction Force (Highest Value) |
1,059 kgf·m |
|
Travel performance: Traveling Speed - Low (XXX/) |
2.58 km/h |
|
Travel performance: Traveling Speed - High (/XXX) |
4.67 km/h |
|
Travel performance: Gradeability |
30° |
|
Weights |
|
|
Operating Weight |
3.72 t |
|
Standard Boom Length |
2.45 m |
|
Standard Arm Length |
1.33 m |
|
Standard Bucket Size |
0.1 m³ |
|
Shoe Width |
300 mm |
|
Dimensions |
|
|
Shipping Height - Hose (With Attachment) |
2,443 mm |
|
Shipping Length (Without Attachment) |
4,823 mm |
|
Shipping Width (Standard) |
1,769 mm |
|
Overall Height Over Cab |
2,443 mm |
|
Working Range |
|
|
Max Digging Reach (Ground) |
5,230 mm |
|
Max Digging Depth |
3,117 mm |
|
Max Loading Height |
3,437 mm |
|
Digging Force (ISO) |
|
|
Arm Digging Force - Pressure up |
2.2 t |
|
Bucket Digging Force - Pressure up |
3.16 t |
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
Packaging & Delivery of Doosan DX35-5 Mini Excavator:
Packaging Details:Nude package Shipped by Ro-Ro or Bulk shipment
Delivery Detail:7~15 days
