Brand Name: XCMG

Model Number: RP601

Dimension: 6400*2500*3830mm

Place of Origin:Jiangsu, China (Mainland)

Product Detail | Technical Information | Packaging | More

Product Detail

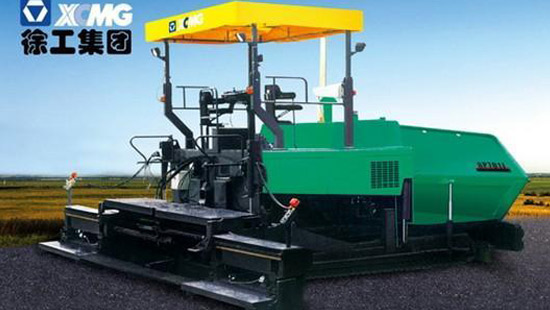

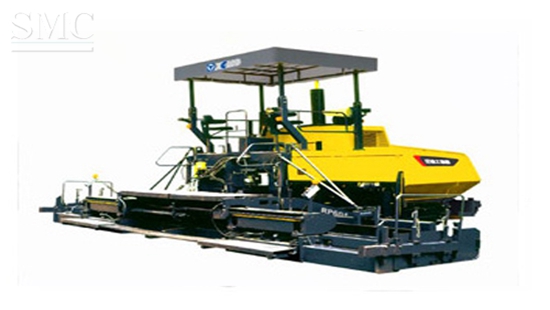

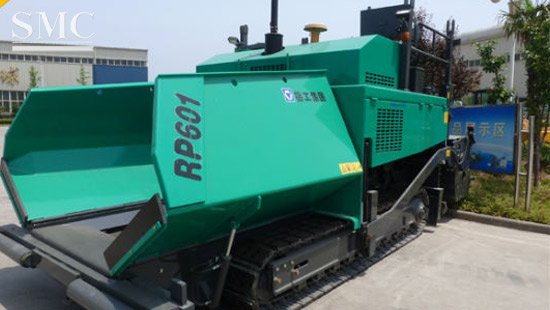

RP601 multifunctional paver adopts multiple advanced technologies like micro-electronic control, ultrasonic sensor, automatic electronic leveling, single vibrator and gas heating, etc. And the key matching components adopt imported products, so it achieves the technical level of similar imported products in product quality and reliability. The paving width ranges from 2.5m to 6m, which can be steplessly adjusted. The ergonomical design makes it simple and convenient to operate and maintain. Thus the product has high performance/price ratio, and it is applicable to the asphalt concrete paving for municipal construction and highways of various grades.

Advanced and mature drive technology. It adopts advanced mechanical-electrical-hydraulic technology, which represents the development trends of construction machinery industry. Full hydraulic drive, electro-hydraulic proportional automatic constant control. Unique, mature and reliable XCMG drive axle technology.

Full hydraulic drive and electric-hydraulic proportional automatic constant speed control. High material distribution capability, Φ360 large diameter mixing blade, 28BH reinforced drive chain. The material feed system and distribution system are independent; the supersonic material level sensing control technology enables it to control the material height. With high capability of anti-segregation, strong power for material distribution, and high strength structure, it can achieve buried distribution and reduce segregation.

It is equipped with electronic automatic leveling instrument, which can reduce the interference of human factors and effectively improve the levelness of road surface.
The most mature and stable hydraulic telescopic screed.
The large and rigid telescopic cylinder features high precision and good stability, which ensures excellent paving quality.

The reasonable telescopic cylinder matches with the sleeve, which makes more accurate screed sliding.
The 3-point suspension system ensures stable extension/withdrawal of screed, in addition to stepless adjustable vibrating rotation speed, it can meet different work requirements.

• Powerful drive force
The travel system adopts high pressure piston pump and double variable displacement motor, featuring good low speed stability, large drive torque, applicable to the requirements of various work conditions. The transmission and drive axle of the travel drive system are integrated as one unit; The 2 speed gear special transmission and differential structure features strong drive force and reliable operation.

• Efficient material feed/distribution
It adopts chain suspension and anti-block screed technology, which improves the reliability, service life and efficiency of material feed/distribution. The spiral blade for material distribution adopts high chromel alloy material, large diameter and thickened design, which improves the distribution capability, heavy load impact resistance ability and wear resistance, in addition to large diameter blade and low speed paving, and reduces segregation.

Technical Information of 17.4~20.5ton 6m Asphalt Concrete Paver RP601：

Items	Unit	Parameters
Basic paving width	m	2.5
Max. paving width	m	6
Max. paving thickness	mm	150
Paving speed	m/min	0~3.6
Travel speed	km/h	0~11
Theoretical Productivity	t/h	300
Hopper Capacity	t	13
Gradeability	%	20
Pavement evenness	mm/3m	3
Transverse levelling accuracy	%	±0.03
Centre crown ratio	%	0~+3
Engine model		D4114ZG2B
Engine power	kW	100
Engine speed	r/min	2400
Machine weight	t	17.4

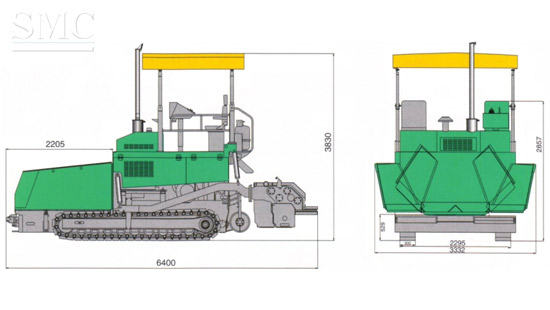

Dimension	mm	6400X2580X3830
Vibrator speed	r/min	0~1470
Screed heating		Gas heating
Auger and conveyor control		Automatic Control by Ultrasonic Sensors
Automatic levelling control		Simulation control of electronic automatic leveler

Items	Unit	Parameters
Screed model	/	475Q
Type	/	Single vibrator+Gas heating
Extension	/	Hydraulic+Mechanical assembly
Width	m	2.5~6.0
Vibrator speed	r/min	0~1470
Vibrator amplitude	mm	4
Extra-long screed	mm	625

Packaging & Delivery of 17.4~20.5ton 6m Asphalt Concrete Paver RP601:

Packaging Details:Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:10 days

Main Features of 17.4~20.5ton 6m Asphalt Concrete Paver RP601:

1. More excellent performance

2. More reliable quality

3. Easier to operate

4. Easier to maintain

5. More energy-efficient and environmental friendly
