Brand Name: SANY
Model Number: SAC6000
Dimension: 22745×3000×4000mm
Place of Origin:Jiangsu, China (Mainland)

Product Detail | Technical Information | Packaging

Product Detail

Shanghai Metal Corporation is a professional supplier of SANY 600Ton All Terrain Crane SAC6000 with high quality and reasonable price.

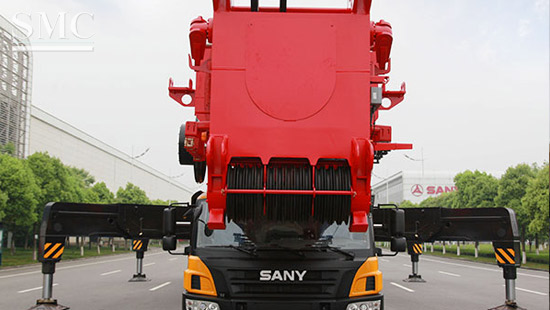

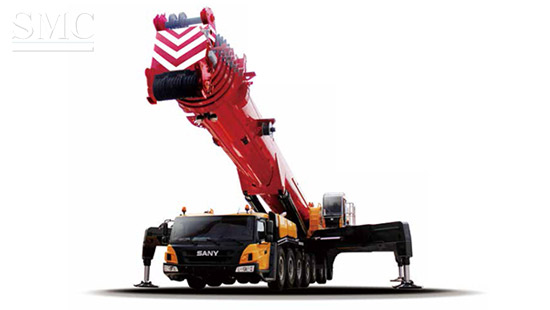

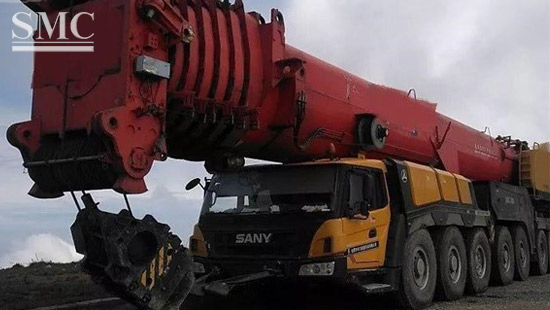

Sany SAC6000 all terrain crane has seven section U-shaped booms welded with bended fine-grain high-strength steel plate. The boom length is 90m,12m~42m boom combination for fixed jib, 24m~90m combination for tower jib, and 6m special jib for wind turbine installation.Thee 600 ton all terrain crane uses self-developed dual-pump converging/diversion main valve. Converging flow of the single-action dual-pump ensure fast and efficient operation. Combined-action dual-pump diversion system is applied to ensure stable controllability. Electric proportional variable displacement piston pump is used to ensure high-accurate flow control which is efficient and energy saving.

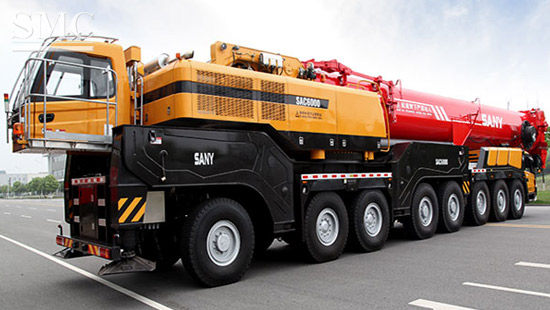

The use of innovative 8-axle chassis design, 6 driving modes and 4 braking modes provide more reliable traveling performance. High stability and safety are guaranteed with tipping over early-warning technology. If you want to know more about Terrain Crane or SANY 600Ton All Terrain Crane SAC6000 price please feel free to contact us, we will reply you within 24 hours

The adoption of internationally advanced distributed integration bus data communication network and the configuration of abundant sensing elements can achieve timely feedback of data information and monitor the overall working status in real-time. The human-computer interaction interface is used to meet customer's individual requirements

The crane's cab is made of safety glass and anti-corrosion steel plate with ergonomic design such as full coverage soften interior, panoramic sunroof and adjustable seats etc., providing more comfortable and safe operation experience.

Technical Information of 600Ton All Terrain Crane SAC6000

Capacity	Max. lifting capacity	600t
Dimensions	Overall length	22745mm
	Overall width	3000mm
	Overall height	4000mm
	Axles	8
	Axle distance-1,2	1650mm
	Axle distance-2,3	1650 mm
	Axle distance-3,4	2000mm
	Axle distance -4, 5	1650 mm
	Axle distance -5, 6	2500 mm
	Axle distance -6, 7	1650 mm
	Axle distance -7, 8	2800 mm
Weight	Overall weight	96000 kg
	Front axle load	12000 kg
	Rear axle load	12000 kg
Engine	Model	BENZ
	Rated power	480 kW/1800rpm
	Rated torque	3000 N.m/ 1300 rpm
	Rated power-superstructure	205kw/2200rpm
	Rated torque-superstructure	1100N.m/1400rpm
	Emission standard	Euro Ⅲ
Traveling	Max. traveling speed	75 km/h
	Min.turning radius	14.5 m
	Min.turning radius of boom head	17.8 m
	Drive train	16 × 8
	Min. ground clearance	310 mm
	Approach angle	12 °
	Departure angle	18 °
	Max. gradeability	37.4%
	Fuel consumption per 100km	≤ 125 L
Main Performance	Temperature range	– 20 ℃ ~ + 50 ℃
	Min.lifting radius	3m
	Tail swing radius of superstructure	6950 mm
	Boom section	7
	Boom shape	U-shaped
	Max. lifting moment-Base boom	18228 kN·m
	Max. lifting moment-Full-extend boom	11900 kN·m
	Max. lifting moment-Full-extend boom+jib	4025 kN·m
	Length-Base boom	17.1 m
	Length-Full-extend boom	90 m
	Length-Full-extend boom+jib	128 m
	Outrigger span(Longitudinal/Transversal)	10.8 × 10.8 m
	Jib offset	0°～40°
Working Speed	Max. single rope lifting speed of main winch(no load)	130m/min
	Max. single rope lifting speed of auxiliary winch(no load)	130m/min
	Full extend/retract time of boom	1200 / 1200 s
	Full raise/lower time of boom	75 / 80 s
	Swing speed	0.9 r/min
Air Condition	HVAC in up cab	Cooling / Heating
Air Condition	HVAC in low cab	Cooling / Heating

Packaging Details: Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail: 10 days
