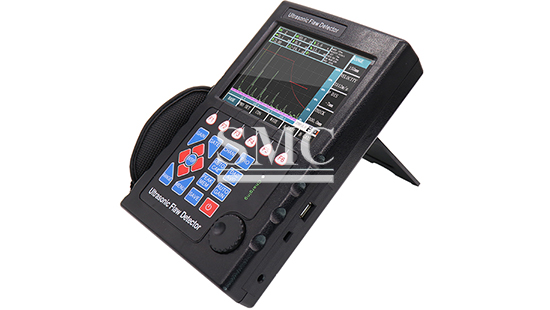

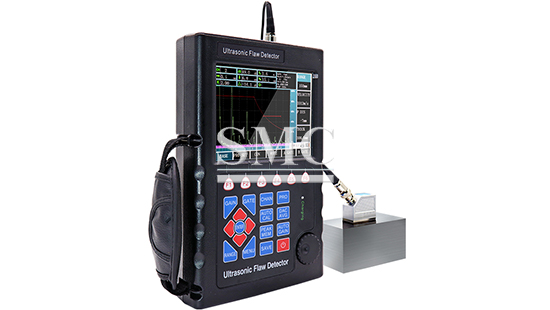

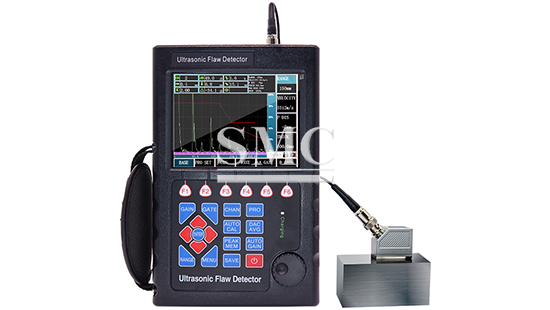

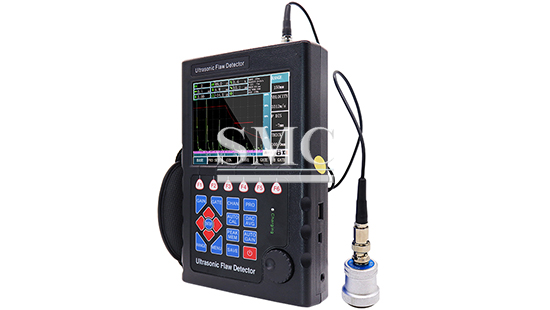

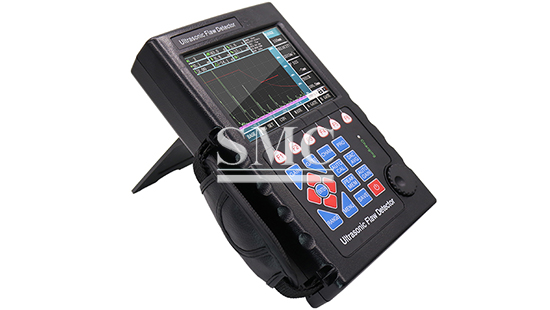

Ultrasonic Flaw Detector

Model Number:

Dimension: H*W*D(mm): 240*156*48

Place of Origin:China

Product Detail

Product Detail

Ultrasonic Flaw Detector with hi-resolution color TFT LCD display. The background color and the wave color can be selectable according to the environment. LCD brightness can be manually set. Continue working over 8 hours with high performance lithium-ion battery module (with large capacity lithium-ion battery option), easy to be dismantled and the battery module can be charged independently offline. It is light and portable, easily to be taken by one hand; easy operation; superior reliability makes it long life.

1.Measuring Range (mm):0 ~10000mm
2. Channels: 500
3. Frequency Range (MHz)：0.2~20MHz
4. Material Velocity (m/s): 1000 ~15000m/s
5. Vertical Linearity Error: ≤3%
6. Horizontal Linearity Error: ≤0.1%
7.Sensitivity Leavings: ≥62dB
8. Dynamic range: ≥32dB
9. Resolving Power: ≥36dB
10. Gain (dB): 0 ~120dB
11. Measurement Mode: Single、Dual、Thru

12. Reject: 0~80%
13. Operating Temperature (℃): -20~70
14. Pulse Displacement (μs): -20 ~+3400
15. Zero (μs): 0.0 ~99.99
16. Port Type: BNC(Q9) or Lemo 01(C9)
17.H*W*D(mm): 240*156*48
18. Weight (kg):1.0（with battery）

1. .Automated calibration、Automated gain
2. DAC、AVG、TCG、B scan、AWS
3. High-speed capture and very low noise
4. High contrast viewing of the waveform from bright
5. Powerful PC software and reports can be export to excel
