Model Number: SMC
Dimension:
Place of Origin:

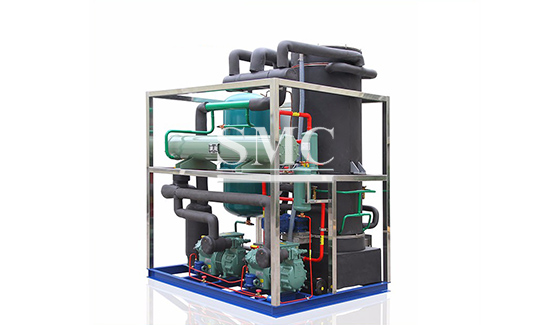

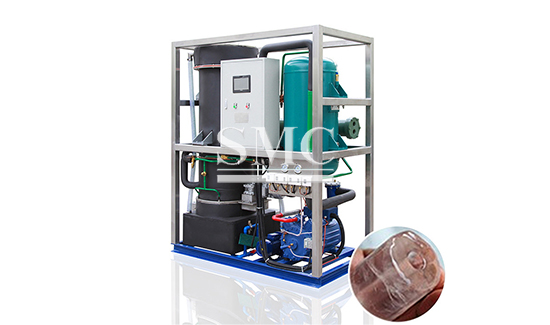

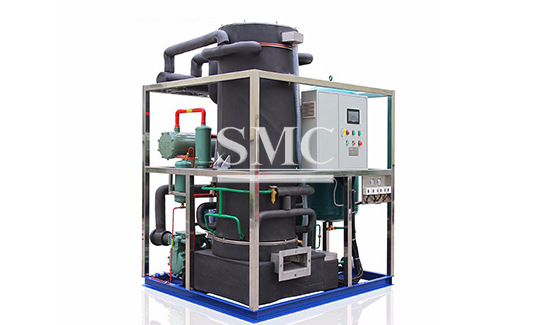

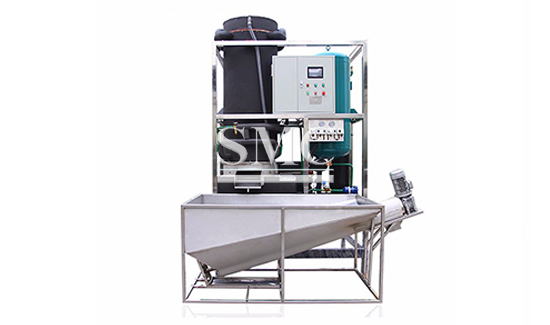

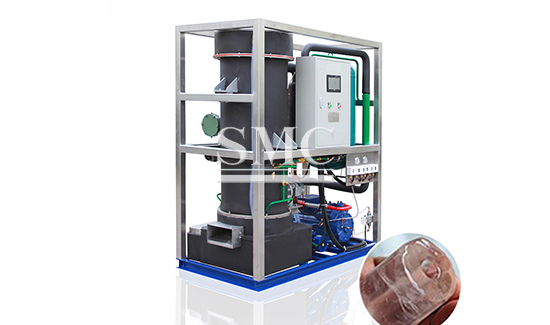

Tube ice machine is a type ice machine, which produces cylinder shape ice with a hole in the middle; it adopts flooded evaporator model, which improves ice making efficiency and capacity. Meanwhile, compact structure design can save installation space.
Ice thickness and hollow part size can be adjusted according to customer requirements. Under PLC program control system to work automatically, the machine has high capacity, low-power consumption and minimal maintenance.

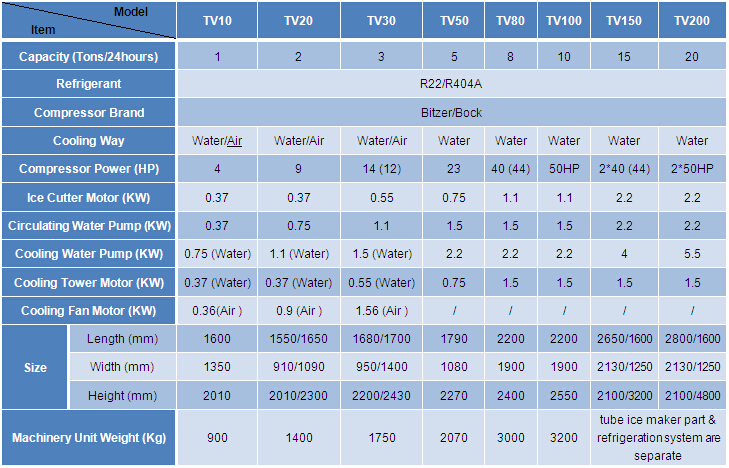

Tube Ice Machine Technical Parameter:
◆ Refrigerant : R22/R404A
◆ Supply Power: 380V~420V, 50Hz/, 3P; 220V~240V/380V, 60Hz, 3P; 440V~480V, 60Hz, 3P
◆ Working Conditions: Input Water Temp: 21℃; Evaporating Temp: -15℃; Condensing Temp: 40℃; (Notice: the actual ice production will be changed with input water temp and ambient temp.)
Packaging & Delivery of Tube Ice Machine:
1. Packed in plywooden case.
2. tube ice machine has two parts: tube ice machine and cooling tower.
3. A 20feet container can load two pieces of tube ice machine for shipping.
4. 30 working days after getting down payment.
