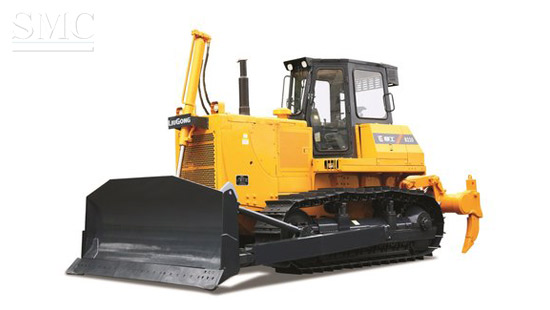

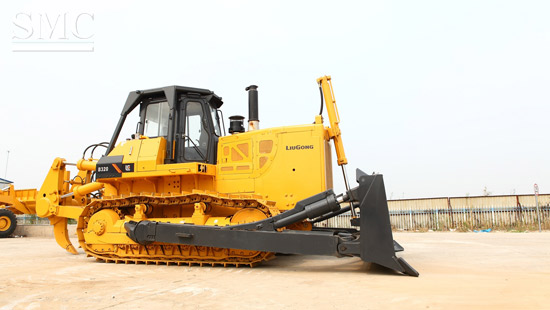

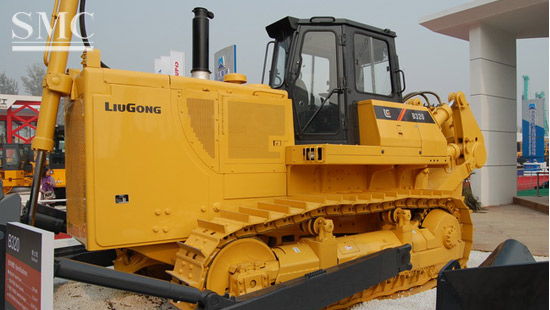

LIUGONG 38.2ton Bulldozer B320

    Brand Name: LIUGONG


    Model Number: B320


    Dimension: 8995*2700*3590mm


    Place of Origin:Jiangsu, China (Mainland)

Shanghai Metal Corporation is a professional supplier of LIUGONG 38.2ton Bulldozer B320 with high quality and reasonable price.

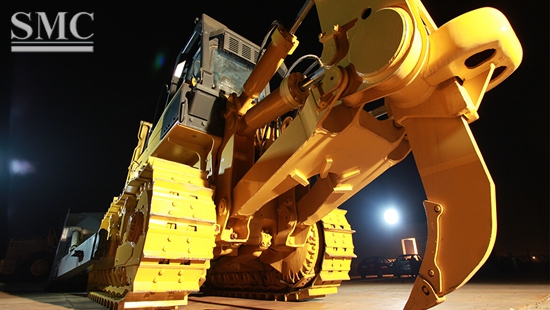

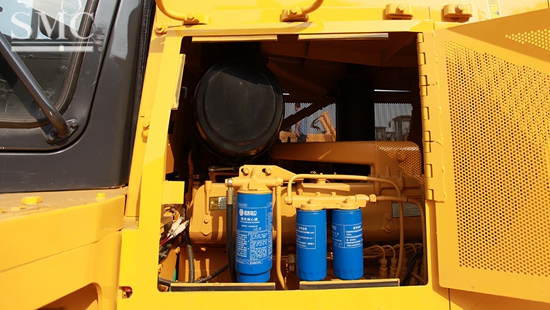

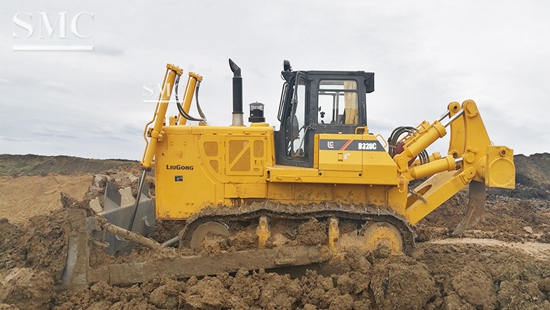

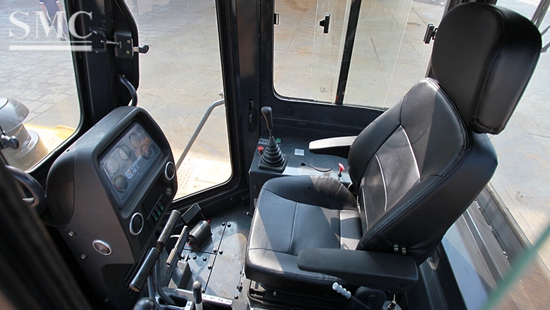

B320C bull dozer is powered by Cummins engine with a rated power output of 257 kW. Load sensing hydraulics delivers high drawbar pull forces with precise control delivering power to where the operator really needs it. The front arrangement of the working cylinder improves the load- carrying performance, delivering more uniform and safe load- carrying from the frame and front hood. Mainteiance speed and access is further improved with automatic greasing system and auto track tensioning fitted as option. Adjustment of the ripper becomes easier because the rack position can be adjusted in the cab.


If you want to know more about Bulldozer or LIUGONG 38.2ton Bulldozer B320 price please feel free to contact us, we will reply you within 24 hours

Technical Information of 38.2ton Bulldozer B320:

Operating weight

38200 kg

Engine power

257 kW (345 hp) @ 2000 rpm

Max travel speed, fwd

12 km/h

Max travel speed, rev

14 km/h

No. of speeds, fwd

3

No. of speeds, rev

3

Referenced Shoe width

560mm

Ground pressure

105 kPa

Blade type

Straight

Blade capacity

10 m³

Depth below ground

560 mm

Lift above ground

1380 mm

Blade angle

14 °

Blade tilt

1000 mm

Transport length

6600 mm

Transport width

4130 mm

Transport height

3590 mm

Model

Cummins

Emission

Stage II / Stage III

Ripper options

Single shank; triple-shank

Blade options

Straight; Semi-U blade

Dimension

476x268x472mm

Weight

20kg (44lb)



Packaging & Delivery of 38.2ton Bulldozer B320:

Packaging Details:Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:7~15 days
