HYSOON 0.89ton Skid Steer Loader HY380

Brand Name: HYSOON

Model Number: HY380

Dimension: 2206*1160*1233mm

Place of Origin:Jiangsu, China (Mainland)

Product Detail | Technical Information | Packaging

Product Detail

Shanghai Metal Corporation is a professional supplier of HYSOON 0.89ton Skid Steer Loader HY380 with high quality and reasonable price.

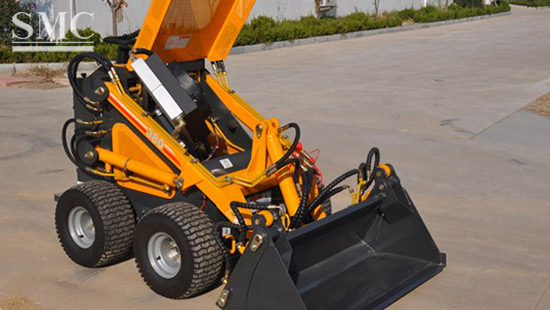

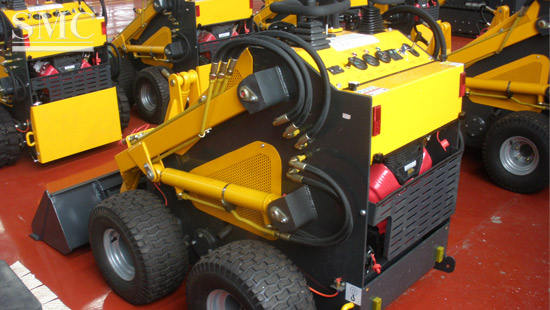

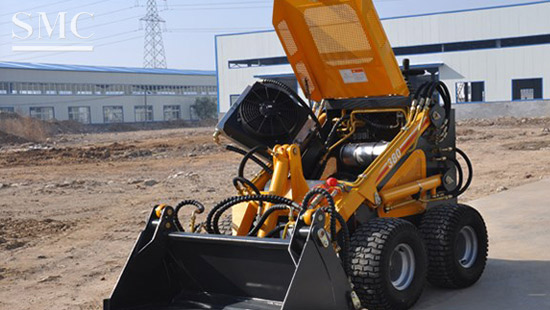

HY380 mini skid steer loader is a easier maintenance machinery,upper cover and back guard plate can be easily opened and dismounted ,you also can easily discharge the wasted egine oil outside the body, replace the spare parts easily ,like filte,engine oil, oi filter, spark plug and so on. Folding pedal designed, driver can stand up the pedal or walk behind to operate machine. Clear instrument panel sign, operating conveniently.

Joystick handle optional, operating more comfortable. International warranty engine, enjoy local 3 years free engine maintenance. If you want to know more about Loader or HYSOON 0.89ton Skid Steer Loader HY380 price please feel free to contact us, we will reply you within 24 hours

· Briggs & Stratton gasoline engine 23hp
· Italian Hydrocontrol valve
· Italian joystick HANSA pump optional
· American WHITE motor
· Ergonomically designed, operating safety
· Quick hitch system
· Balance weight platform optional
· Higher lifting height than similar products
· Stand on or walk behind
· Double hand grip
· Tracked and wheeled type optional

It can change different attachments at job site, change just needs a few of minutes , to adapt to different working environment and job contents In this way, shoveling, stacking, lifting, digging, drilling, crushing, grasping, pushing, loosening soil, trenching, road cleaning can be respectively carried out. An auxiliary trailer can load all attachments to job site, do whatever you want to do.

It can be used for site clearing and project closing after large engineering machinery. The 4 in 1 bucket would better choice of attachment for this job, which is with pushing, shoveling,leveling and grabbing 4 functions.

Technical Information of HYSOON 0.89ton Skid Steer Loader HY380

Dimension	Unit	HY380
Overall length	mm	2206
Overall width with bucket	mm	1160
Overall height	mm	1233
Weight
Operating weight	kg	890
Operating load	kg	200
Power
Engine model		Petrol
Engine rated power	HP/(r/min)	23/3600
Travel
Travel speed	km/h	5.5
Main performance
Max. working height	mm	2143
Max. pin height	mm	1884
Max. dumping height	mm	1488
Max. dumping distance	mm	348
Wheel base	mm	636
Ground clearance	mm	118
Bucket width	mm	980
Turn Radius Forward Turning	mm	1307
Bucket capacity	m3	0.15
Working time
Raise	s	4.27
Dump	s	1.34
Lower	s	3.31

Packing of HYSOON 0.89ton Skid Steer Loader HY380

Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:

7~15 days
