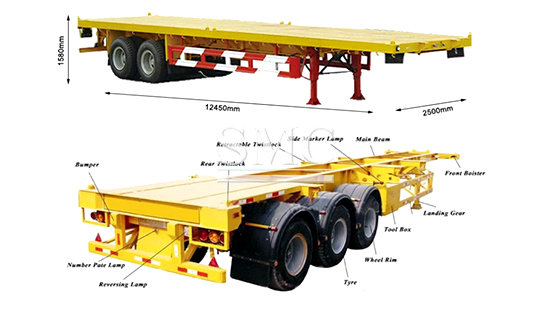

Overall (L*W*H):12400*2500*1530mm
Frame:Material:High strength low alloy Q345 steel
Main beam height:500 mm
Thickness of main beam:upper: 14mm, lower: 16 mm, webplate: 8mm
Floor: 3 mm checkered plate
Packing detail: Container ships

1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Mainly used in logistics systems supporting ships, ports, routes, highways, transfer stations, bridges, tunnels, and multimodal transport.
