Type: According to the drainage method of the filter, there is a manual drainage type. The automatic drainage type has a normally open type and a normally closed type according to the drainage state when there is no air pressure.
According to the drainage method of the filter, there is a manual drainage type. The automatic drainage type has a normally open type and a normally closed type according to the drainage state when there is no air pressure.

It removes solid impurities, water droplets and dirty oil droplets in the compressed air, but cannot remove gaseous oil and water.
According to the air quality requirements to choose the filtration accuracy. The filter specification is selected according to the maximum flow rate through the filter and the maximum pressure drop allowed at both ends. Then select other functions of the filter, such as whether to automatically drain. The water cup can be a nylon cup or a metal cup, and the metal cup can also be equipped with a level gauge, and the form of a drain pipe.

1) Before assembling, fully blow off the chips, dust, etc. in the piping to prevent the fragments of the sealing material from mixing.

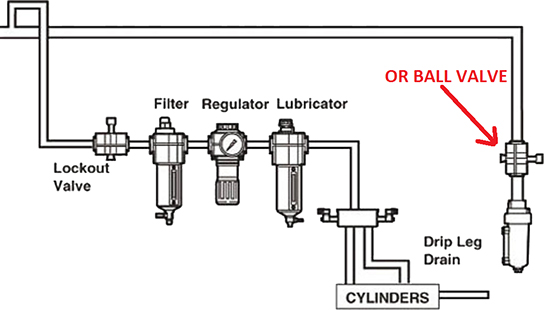

2) The import and export direction should not be installed in the reverse direction, and the installation should be vertical with the water cup downward.
3) Do not install near the air compressor. It should be installed near the gas device.
4) Drain regularly, and the water level shall not exceed the baffle.
5) The filter element should be cleaned or replaced regularly. To clean the filter element, use a neutral detergent.
