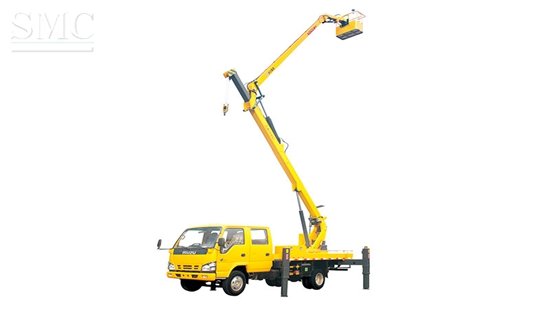

XCMG 18.3m Aerial Working Platform XZJ5068JGK

Brand Name: XCMG
Model Number: XZJ5068JGK
Dimension: 8800*2000*3050mm
Place of Origin:Shaanxi, China (Mainland)

Product Detail | Technical Information | Packaging | More

Product Detail

• Originally imported Germany Hawe solenoid valve (main control valve), proportional valve, and proportional handle.

• Electro-hydraulic proportional control, stepless speed regulation, and superior operational performance.

• The turntable and work platform can work together, and both the operation can achieve remote control of the engine.

• The internally mounted leveling system ensures that the work platform always keeps level.

• The horizontal and vertical extension and withdrawal of the four outriggers can be independently controlled, featuring good adaptability.

• There is elevation angle limit device for the upper arm, which can avoid danger.

• The interlock between the superstructure and undercarriage and the soft outrigger protection function ensure safe operation.

• When the horizontal outriggers are not extended, the slewing of the work arm is limited, while it can still be lifted or lowered, which ensures safety and improves efficiency.

• The emergency pump is available.

• The electronic timer can add up the work time for timely maintenance.

• The imported key parts has high reliability, good performance and long service life.

• The synchronic telescopic arm structure has high work efficiency and wide work range.

• The multifunction integrated handle is very convenient, smooth and comfortable to operate.

• The PLC control has superior safety performance like automatic amplitude limit and danger alarm function.

• The special energy-saving design ensures that the engine is automatically adjusted to ideal speed during engine idling.

• The interlock between the superstructure and undercarriage can effectively avoid misoperation, which is safe and reliable.

• The large outrigger span features good stability, and the outriggers can be operated simultaneously or independently, which can be applicable to various kinds of work conditions.

• The emergency power unit can effectively cope with unexpected failures.

• The work platform is mounted at the rear part, which is convenient to enter or exit the cab; and it also reduces the gravity of the whole machine and improves travel performance.

• The work platform can slewing ±90°, which is convenient for the aerial work.

• Convenient one button extension/withdrawal function.

Technical Information of 18.3m Aerial Working Platform XZJ5068JGK:

Vehicle Model	XZJ5068JGK
Max Operating Height	18.3m
Max Operating Radius	8.7m
Rated Load of Platform	200kg
Slewing Angle	±360°
Max Operating Radius at Maximum Operating Height	2.8m
Max Operating Height at Maximum Operating Radius	10.2m
Max Lifting Capacity	2000kg
Max Lifting Height	9.7m
Dimension in Driving( L × W × H)	8800×2000×3050(mm)
Chassis Model	NKR77PLLWCJAY
Engine Model	4KH1-TC
Engine Power	96kw
Passengers	2+3

Packaging & Delivery of 18.3m Aerial Working Platform XZJ5068JGK:

Packaging Details:Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:10 days

Main Features of 18.3m Aerial Working Platform XZJ5068JGK:

1. More excellent performance

2. More reliable quality

3. Easier to operate

4. Easier to maintain

5. More energy-efficient and environmental friendly
