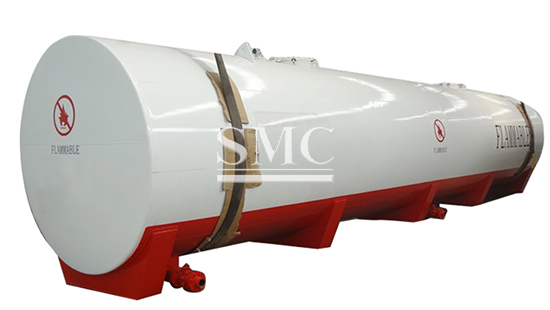

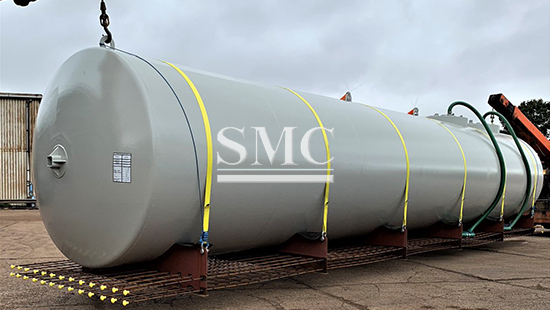

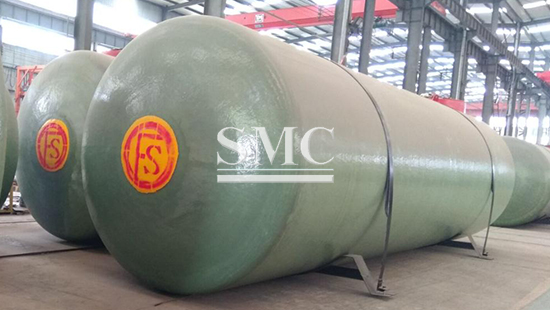

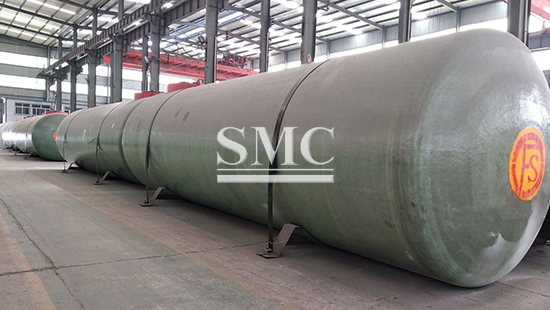

1) Fiberglass reinforced plastics jacketed steel underground fuel tank volume: 1-100 cubic meters

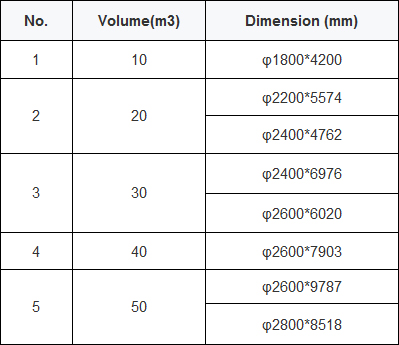

2) Dimension: we could design diameter and height as per customers' request
3) Material: Fiberglass/Steel
4) Diesel fuel tank shell thickness: 6-10mm
5) Pressure (MPa): Atmospheric pressure Middle pressure (According to the Chinese Design standard)
6) Function: Oil Storage

1) The inner - made of Q235-B steel plate, is much stronger than a single tank. Overhaul extrinsic - strengthens glass fibers. Strong corrosion and electric corrosion resistance:
The specific process technology is used between the two layers to achieve 0. 1m gap, eliminate hidden trouble from the root.

2) Environmental protection
It's a two-layer structure. It has a 0. 1mm gap, the outer FRP ensures that the leakage will not directly leak contaminated soil and water.
The outer FRP does not cause electrolytic corrosion with groundwater, saline, etc.
The outer FRP will not corrode with gasoline, diesel oil and leaded gasoline.

3) Economy
The service life of the double-deck tank is 5-10 times that of the ordinary tank, which can guarantee at least 30 years of safe use.
Convenient installation, greatly shorten the construction period, reduce the cost of investment.
The leak detector can monitor the whole process for 24 hours to eliminate the potential pollution

Service stations
Private fuel stations
Storage of flammable liquids for heating systems
Feeding generators
Storage of aircraft and ship fuels
Storage of chemicals and water-polluting liquids
Collection and storage of lubricants and drain oils
Collection and storage of waste and effluent water
